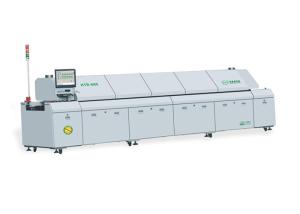

KTR-800 SMT Reflow Oven , SMT Production Line Full Nitrogen Quantitative Control

Product Categories

Qinyi Electronics Co.,Ltd QYSMT

Contact Now

Brand Name : KT

Model Number : ktR-800

Certification : CE ,ISO

Place of Origin : China

MOQ : 1unit

Price : Negotiation

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 5Unit/Month

Delivery Time : 25 days

Packaging Details : Wooden packing

Rails structure : Overall sectional type

Chain structure : Double buckle for preventing board jammed

Max width of PCB : 400mm(option:460mm) dual-rail 300mm*2

Range of rail width : 50-400mm(option:50-460mm) dual-rail 300mm*2

Component height : Top 30/Bottom 30mm

Conveyor direction : L→R(option:R→L)

Conveyor height : 900±20mm

Conveyor speed : 300-2000mm/min

Auto-lubrication : Multi-lubricating mode can be chosen

Contact Now

KTR Series Lead-Free Hot Air Reflow Ovens KTR-800

Product features:

High production capacity, the normal production chain speed up to 160cm / min; low energy consumption, the new thermal management system, effectively reduce costs; professional response to high-speed production and high precision PCB packaging process.
Temperature control ability, high temperature control accuracy, set and the actual temperature difference of 1.0 ℃; no load to full load temperature fluctuations within 1.5 ℃; super fast capacity to cool down, adjacent temperature difference within 100 ℃.
The latest insulation technology plus the new furnace design to ensure that the greenhouse +5 ℃ furnace temperature.
Full nitrogen quantitative control, the temperature of the independent closed-loop control, nitrogen concentration range can be 5-200ppm.
The latest cooling technology, optional multi-zone double-sided cooling; maximum limited cooling length 1400mm; to ensure rapid cooling products and the lowest outlet temperature.
The new two-stage flux recovery system, multi-point collection, and fully improve the efficiency of recovery for customers to reduce maintenance time and frequency.
Dual-track two-speed, stand-alone costs, double capacity, energy saving up to 65%.

Product parameter:

Control system
Power supply requiement	3 phase ,380v 50/60HZ(Option:3 phase ,220v 50/60HZ
Total power	64KW
Startup power	30KW
Normal power consumption	9KW
Warming Time	Approx:20min
Temperature control range	Room Temperature -300℃
Temperature control method	PID close loop control + SSR driving
Temperature control precision	±1℃
Temperature deviation on PCB	±1.5℃(by RM board test standard)
Data storage	Process data and status storage
Abnormal alarm	Abnormal temperature(extra-high/extra low temperature after constant temperature)
Board dropped alarm	Singal light(yellow-warning;green normal;red -Abnormal

Cooling system
Cooling method	Firced air Water chiller
